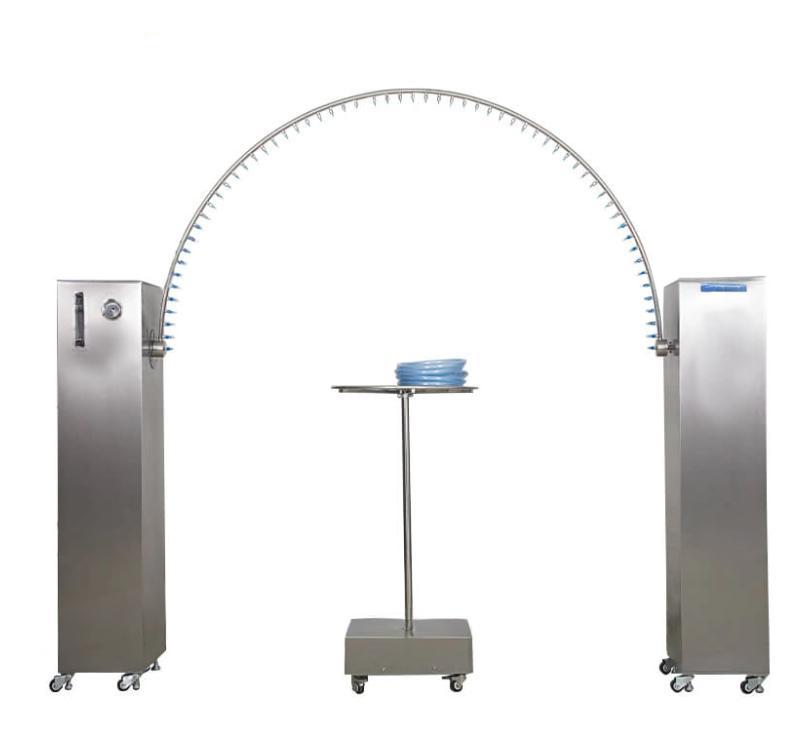

IPX3 X4 Water Spray Test Chamber
Discover advanced IPX34 rain spray test rooms for accurate water resistance testing. Ensure your products meet international standards with precision and reliability.
- Model：DX-H501-1
- Water pipe diameter: φ16mm
- Spray orifice diameter：φ0.4mm
- Swing pipe : ±45°、±60°、±90°、±180°（theory number）
Product Details
Precision IPX3 X4 Water Spray Test Chamber for Reliable Product Durability
Discover our advanced IPX3 X4 Water Spray Test Chamber designed to deliver precise water resistance testing that meets IEC 60529 standards. Perfect for electronics, automotive parts, and other sensitive equipment, this chamber simulates real-world rain and splash conditions to ensure your products can stand up to harsh environments.
Engineered with accuracy and ease of use in mind, our chamber gives you confidence in your product’s waterproof rating—whether you’re testing automotive headlamps or electronic enclosures. Experience reliable, repeatable testing that helps you meet global quality requirements without hassle.
Ready to see how it can protect your products? Request a quote today or download our brochure to learn more.
Key Features and Benefits
Our IPX3 X4 Water Spray Test Chamber is packed with features designed to deliver reliable, precise water spray testing for your products.
- Oscillating Tube with Adjustable RadiusEnsures uniform water coverage from multiple angles, simulating real-world rain and splash conditions.
- Detachable Nozzle SystemEasily adjustable nozzles let you fine-tune the spray pattern and volume for customized testing.
- Precise Water Flow ControlMaintains consistent pressure and flow rate to meet IEC 60529 standards with accuracy.
- Automated Water CirculationReduces water waste by up to 90%, cutting down operating costs and making the process eco-friendly.
- User-Friendly InterfaceSimple controls make setting test parameters quick and reduce setup time.
How These Features Benefit You
| Feature | Solves This | Benefit |
|---|---|---|
| Oscillating Tube Radius | Inconsistent water coverage during tests | Accurate simulation of real rain/splash |
| Nozzle Adjustability | One-size-fits-all sprays can miss key weak points | Customizable spray patterns for all product types |
| Water Flow Control | Fluctuating water pressure leads to unreliable results | Consistent test conditions for valid certification |
| Automated Circulation | High water use means higher utility bills and waste | Saves up to 90% on water, lowering operational costs |
| Simple User Interface | Complex setups slow testing and require more training | Faster tests, easy for any technician to run |
These features combine into a test chamber that’s both precise and efficient—helping you test more units with less time and waste. Visually, clear icons or infographics display key functions for quick reference by your team.
Technical Specifications
| Item | Specification |
| Spray ring radius | 375 and 500mm |
| Water pipe diameter | φ16mm |
| Spray orifice diameter | φ0.4mm |
| Aperture spacing | 500mm |
| Swing pipe | ±45°、±60°、±90°、±180°（theory number） |
| Test stands rotate speed | 1r/min(can be no quarter speed adjustment) |
| Controller | Import FM type inverter |
| Times controller | Import programmable computer integrated time controller (Jin Zhong Mo le) |
| Water pressure control | flow gauge |
| Observation plane | Large area of toughened glass door visualization |
| Water supply system | booster pump, water storage |
| Safety protection leakage | Short circuit, Motor overheating |
| Power supply | 2200V, 50HZ/60HZ |
Our IPX3 X4 water spray test chamber meets strict IEC 60529 and ISO standards, ensuring reliable waterproof enclosure testing. Look for compliance badges from IEC and ISO to confirm test accuracy and global certification acceptance. This chamber delivers consistent, repeatable water ingress testing with full control over spray volume and oscillation speed for precise simulation.
Standards and Compliance
The IPX3 and IPX4 water spray tests are essential benchmarks in protecting your products against water damage according to international standards.
IPX3 testing involves exposing devices to spraying water at an angle up to 60 degrees from vertical. This simulates water falling as rain or being sprayed lightly, ensuring your product can handle splashes without internal damage.
IPX4 testing steps up the challenge by subjecting products to water sprayed from all directions. This means the product must resist splashing water from any angle, making it ideal for harsher environments.
Both tests follow the global IEC 60529 standard, which defines how to assess protection levels against water ingress. The typical procedure involves 5 to 10-minute exposure cycles using an oscillating tube with adjustable nozzles to provide consistent spray coverage.
Our chamber fully complies with these protocols to give you reliable, repeatable test results that meet the industry’s toughest water resistance requirements. Whether you’re testing automotive lamps, electronic devices, or enclosure waterproofing, you can trust these tests to keep products safe and durable in real-world conditions.
Applications and Use Cases
Our IPX3 X4 Water Spray Test Chamber is built for a wide range of industries that demand reliable water resistance testing. It’s perfect for automotive manufacturers testing headlamps and exterior lighting, ensuring products meet strict IEC 60529 standards. LED fixture producers use it to verify water ingress protection for indoor and outdoor applications. Consumer electronics brands rely on this chamber to simulate real-world spray and splash conditions, helping guarantee durability for gadgets used in everyday environments.
We’ve helped companies certify over 1,000 units with consistent, repeatable results. One automotive client praised how our chamber simplified their IPX3 rain test process, cutting test time while improving accuracy. Another LED manufacturer found our adjustable oscillating tube and detachable nozzle ideal for replicating tough splash scenarios without wasting water. These success stories show how our IPX3 X4 water spray tester supports smooth certification, reduces production delays, and gives your products the competitive edge customers expect.
How It Works Setup Guide
Getting started with the IPX3 X4 Water Spray Test Chamber is simple and straightforward. Here’s how you can run your water spray test in just a few steps:
- Step 1: Sample PlacementPlace your product inside the chamber on the designated test platform. Make sure it’s securely positioned to avoid movement during the test.
- Step 2: Nozzle CalibrationAdjust the detachable nozzles and oscillating tubes to match the required spray radius and angle according to IEC 60529 standards. This calibration ensures the water spray hits the right spots on your product.
- Step 3: Test Parameter SetupEnter your testing parameters, including spray volume, oscillation speed, and duration, using the chamber’s user-friendly control panel. You can program specific IPX3 or IPX4 tests based on your product requirements.
- Step 4: Test ExecutionStart the test cycle. The chamber will automatically run the water spray test, simulating rain or splash conditions as per the IPX3/X4 requirements. The automated system manages water circulation efficiently, reducing waste.
- Step 5: Test Completion and EvaluationWhen finished, inspect your sample for water ingress or damage. The chamber can be easily drained and reset for the next test batch.
For a clearer picture, check the animated GIF/video below demonstrating the entire setup and test process in action. This visual guide makes it easy for first-time users to get confident with the IPX3 rain test chamber operation.
Ready to run precise water ingress tests? Reach out to us for a live demo or download the detailed user manual for step-by-step support.
Customization Options
Our IPX3 X4 Water Spray Test Chamber is designed to fit your testing needs perfectly. You can choose from modular add-ons that expand the chamber’s capabilities, including integrated IPX1 to IPX6 testing for a full range of water ingress protection levels. Need more space? Larger chamber sizes are also available to accommodate bigger products or multiple units at once.
For more control and convenience, Ethernet-enabled controls let you manage tests remotely and integrate the chamber seamlessly into your workflow. These customization options ensure your testing setup grows with your product development demands.
Why Choose Our Brand Competitive Edge
When it comes to IPX3 X4 water spray test chambers, we stand out for a few key reasons that matter to U.S. customers:
- 3 Year Warranty – We offer a full 3-year warranty, compared to the industry standard 1 year. That means longer protection and peace of mind.
- Proven Reliability – Over 15 years in business supporting American manufacturers in automotive, electronics, and consumer goods.
- Certified Quality – Our chambers meet IEC 60529, ISO, and other industry certifications to ensure top-notch performance.
- Trusted by Leading Brands – We work with well-known clients across the U.S. — you’ll see their logos proudly displayed because they trust our testing accuracy and durability.
- Better Support and Service – Localized customer service with quick response times and expert technical support to keep your testing running smoothly.
| Feature | Our Brand | Competitor Dekxiang |
|---|---|---|
| Warranty | 3 Years | 1 Year |
| Certifications | IEC 60529, ISO | Limited Certifications |
| US-based Support | Yes | No |
| Years in Business | 15+ | 5+ |
| Client Portfolio | Top US Automotive & Electronics | Mostly Asia-based customers |
Choosing us means investing in dependable, precise IPX3 and IPX4 water spray test chambers that meet your production demands and keep your products compliant.
Pricing and Availability
Our IPX3 X4 Water Spray Test Chamber is priced to fit various budgets with tiered options. The base model starts at $12,500, offering essential features for precise IEC 60529 water ingress testing. Upgrades like extended oscillation ranges, modular add-ons, and Ethernet controls are available at additional costs to meet your exact needs.
Typical lead times range from 4 to 6 weeks, depending on customization and order volume. We ship across the United States with reliable freight partners and offer expedited shipping options for urgent projects. Contact us anytime for a detailed quote or to discuss your delivery timeline.
FAQs and Support
Common Questions
What maintenance does the IPX3 X4 Water Spray Test Chamber need?
Regular checks on nozzles and oscillating tubes are important. Clean the spray nozzles monthly to prevent clogging. Inspect seals and hoses every three months to avoid leaks. Replace worn parts promptly to keep tests accurate.
How often should calibration be done?
We recommend calibrating the spray flow and oscillation speed every six months or after any major repair.
Can it test different product sizes?
Yes, the chamber design allows for adjustable tube radius and nozzle positions—perfect for various electronics and automotive parts.
Is training offered for operating the chamber?
Yes, we provide detailed setup guides and can arrange live demos or training sessions on request.
What if I face technical issues?
Our support team is available via live chat and email. For urgent help, schedule a demo or remote troubleshooting session.
