Product Overview

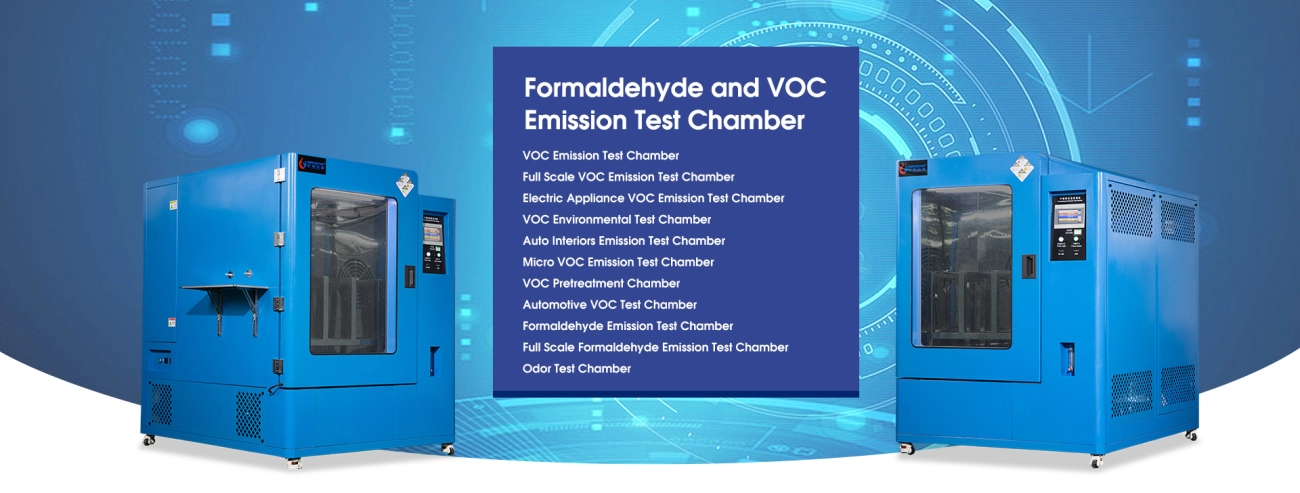

The Dexiang Formaldehyde Emission Test Chamber is engineered to deliver precise, reliable measurements of formaldehyde and other volatile organic compounds (VOCs) released from building materials and consumer products. Designed for both research labs and industrial quality control, this chamber simulates real-world environmental conditions to ensure your materials meet stringent emissions standards.
Key Applications
- Building Materials: Test wood panels, composite boards, laminates, and insulation for formaldehyde and VOC emissions.
- Furniture and Interiors: Analyze emissions from finished furniture, flooring, and decorative materials.
- Automotive and Textiles: Assess formaldehyde release from vehicle interior components and treated fabrics.
- Environmental Simulation: Support indoor air quality assessments and regulatory compliance testing.
Brand Spotlight: Dexiang
With decades of expertise in environmental simulation and emissions testing, Dexiang stands out as a trusted partner for manufacturers and labs across the United States. Our innovative chambers combine precision engineering with user-friendly design, backed by rigorous calibration and ongoing global regulatory expertise. Dexiang is committed to supporting your compliance journey with industry-leading technology and dedicated customer service.
Technical Specifications of Dexiang Formaldehyde Emission Test Chamber
Chamber Dimensions & Capacity
Our formaldehyde emission test chamber comes in various sizes to fit your testing needs:
| Model | Interior Dimensions (L×W×H) | Capacity (ft³) | Max Load (lbs) |
|---|---|---|---|
| Small-Scale | 24″ × 24″ × 24″ | 8 | 50 |
| Medium-Scale | 36″ × 36″ × 36″ | 27 | 150 |
| Large-Scale | 48″ × 48″ × 48″ | 64 | 300 |
Environmental Controls
- Temperature Range: 15°C to 50°C (±0.5°C accuracy)
- Humidity Range: 30% to 90% RH (±3% accuracy)
- Air Exchange Rate: Adjustable from 0.2 to 1.0 air changes per hour
- Airflow Control: Uniform, laminar flow for consistent emission sampling
- VOC-Free Air Supply: Built-in filtration system ensures clean air inside the chamber
Testing Parameters
Our chambers support standard testing protocols including:
- ASTM D6007 (Formaldehyde concentration measurement)
- EN 717-1 (Formaldehyde emission testing for wood products)
- CARB (California Air Resources Board) formaldehyde emission requirements
Parameters measurable with the chamber:
- Formaldehyde concentration (ppm)
- Temperature and humidity stability
- Emission rate (μg/m²·h)
- VOC levels in combination with formaldehyde
Compliance Standards Table
| Standard | Description | Compliance Status |
|---|---|---|
| ASTM D6007 | Small-scale chamber formaldehyde testing | Fully compliant |
| EN 717-1 | Emission testing for panels and wood | Certified |
| CARB | Regulatory compliance for the U.S. | Meets requirements |
| EPA TSCA Title VI | Toxic Substances Control Act, formaldehyde limits | Compliant |
Power & Safety
- Power Supply: 110V/220V options available (50/60 Hz)
- Power Consumption: Approx. 1.2 kW per chamber
- Safety Features:
- Over-temperature protection
- Leak-proof seals to prevent emissions leakage
- Emergency shut-off system
- Built-in alarms for abnormal conditions
Our Dexiang formaldehyde emission test chambers combine precise environmental control with robust compliance and safety features — designed to meet the needs of U.S. manufacturers and labs testing wood, composite, and building materials.
Features and Benefits of Our Formaldehyde Emission Test Chamber
Our formaldehyde emission test chamber is designed to deliver accurate and reliable results every time, helping you meet strict indoor air quality standards with ease. Here’s a quick look at what sets it apart:
| Feature | Benefit |
|---|---|
| Precise Environmental Controls | Maintains stable temperature, humidity, and airflow for consistent testing outcomes. |
| Compact and Large Size Options | Fits various sample sizes, from small wood panels to larger building materials. |
| User-Friendly Interface | Simple controls and a clear display make operation straightforward, reducing training time. |
| Compliance with ASTM D6007 & EN 717-1 | Ensures your tests meet key U.S. and international standards for formaldehyde emissions. |
| Durable, Corrosion-Resistant Materials | Provides long-term use with minimal maintenance, protecting your investment. |
| Integrated Data Logging | Automatically records test results, making documentation and reporting hassle-free. |
| Flexible Test Settings | Customize parameters for different materials and VOC emission profiles. |
Visual Highlights
- Clear chamber window: Easy sample observation without opening the chamber.
- Digital touchscreen: Quick setup and real-time monitoring.
- Compact footprint: Saves valuable lab space without sacrificing performance.
- Robust construction: Built to last with industrial-grade materials.
These features come together to give you confidence in your formaldehyde testing—fast, repeatable, and compliant results that keep you ahead in quality control.
How It Works: Step-by-Step Guide to Formaldehyde Emission Testing
Using a formaldehyde emission test chamber is straightforward. Here’s how you get accurate and reliable results:
- Prepare the SampleCut or shape your product—wood panels, furniture parts, or building materials—to fit inside the chamber.
- Place the Sample Inside the ChamberCarefully put the sample in the climate-controlled chamber. Make sure it’s positioned to allow even airflow around it.
- Set Testing ConditionsAdjust temperature, humidity, and airflow according to the test standard (like ASTM D6007 or EN 717-1). The chamber’s controls make this quick and precise.
- Start the TestClose the chamber securely and begin the test. The system monitors formaldehyde emissions over a set period, simulating real-world conditions indoors.
- Collect DataSensors inside the chamber detect formaldehyde concentration. The data is logged automatically, ready for analysis.
- Analyze ResultsUse the connected software to review emission levels and compare them against regulatory limits.
- Clean and Prep for Next TestAfter testing, clean the chamber as recommended to prevent contamination for the next sample.
For a quick walk-through, watch our embedded video below that shows each step in action, giving you a clear picture of how the formaldehyde emission test chamber operates in a real setup.
Compliance and Certifications
Regulatory Alignment
When it comes to formaldehyde emission testing, meeting strict regulations is non-negotiable. Our Dexiang formaldehyde emission test chambers align fully with key U.S. and international standards, including ASTM D6007, CARB (California Air Resources Board) requirements, and EPA guidelines. This ensures your materials and products are tested accurately and accepted by regulators. Staying compliant means avoiding costly delays and product rejections, especially in industries like wood products, furniture, and building materials where indoor air quality rules are tight.
Dexiang Certifications
Dexiang takes quality seriously. Our chambers come with industry-recognized certifications that verify reliability and accuracy:
- ISO 9001 Certified Manufacturing – guarantees consistent quality control.
- CE Marking for safety and environmental compliance.
- Calibrated and tested against EN 717-1 and other relevant international emission standards.
- Third-party validation to ensure precise formaldehyde concentration measurements.
These certifications give peace of mind that you’re investing in equipment ready for regulatory scrutiny in the U.S. and global markets. With Dexiang, you’re equipped to deliver trustworthy emission data that meets compliance demands—helping you focus on your product development instead of testing hurdles.
Applications and Industries
Our formaldehyde emission test chambers serve a wide range of industries where indoor air quality and safety standards matter most. Here’s a quick look at key sectors using our chambers:
- Wood and Composite Materials: Perfect for testing plywood, particleboard, and fiberboard to meet CARB and EPA regulations.
- Furniture and Interiors: Helps manufacturers check formaldehyde emissions from finished products to ensure safer home and office environments.
- Automotive and Textiles: Used to assess VOC and formaldehyde release in vehicle interiors and upholstery materials.
- Building and Construction: Essential for certified testing of insulation, flooring, and wall panels per ASTM and EN standards.
Success Stories
Several U.S.-based manufacturers have improved their product compliance and reduced formaldehyde emissions effectively using our chambers. For example:
- A leading furniture maker cut testing turnaround time by 30% while meeting stringent CARB 2 standards.
- A composite wood supplier gained faster approval for new products by using real-time environmental simulation with our climate-controlled chambers.
- An automotive parts company ensured passenger safety through precise formaldehyde monitoring during materials development.
These success stories showcase how our formaldehyde emission test chambers contribute to safer products and smoother regulatory compliance across industries.
Related Products
Looking to expand your testing capabilities? Check out these complementary products designed to work seamlessly with our formaldehyde emission test chamber:
| Product Name | Description | Ideal For |
|---|---|---|
| VOC Emission Test Chamber | Measures overall volatile organic compounds | Comprehensive indoor air quality |
| Small-Scale Emission Chamber | Compact size for quick, small-sample tests | Labs with limited space |
| Environmental Simulation Chamber | Controls temperature and humidity precisely | Advanced material testing |
| Formaldehyde Concentration Detector | Real-time formaldehyde level monitoring | On-the-spot air quality checks |
Upsell Note
Enhance your testing workflow by bundling our formaldehyde emission test chamber with these advanced tools. Not only will this improve your testing accuracy, but it also streamlines data collection and analysis—all backed by Dexiang’s reliable support. If you’re serious about compliance and product quality, these add-ons are worth considering. Reach out to us for custom package deals tailored to your needs.
Pricing and Purchasing
Choosing the right formaldehyde emission test chamber comes down to your testing needs and budget. We offer tiered pricing options that fit small labs up to large-scale industrial setups, so you get exactly what you need without extra cost.
Tiered Pricing Overview
| Model | Chamber Size | Features Included | Price Range (USD) |
|---|---|---|---|
| Basic | Small-scale (20L) | Standard controls, basic software | $8,000 – $12,000 |
| Standard | Medium (50L) | Advanced controls, enhanced results | $12,000 – $18,000 |
| Premium | Large (100L+) | Full automation, compliance modules | $18,000 – $25,000+ |
Purchasing Options
- Lease or Buy: Flexible payment plans available to fit your cash flow.
- Custom Configurations: Tailor specs and add-ons for unique testing requirements.
- Support & Training: Included with all purchases for easy setup and smooth operation.
Ready to Order?
Get in touch today for a personalized quote or demo.
Call us: 1-800-DEXIANG
Email: sales@dexiangtesting.com
Or request a quote online for faster response.
We’re here to help you pick the perfect formaldehyde testing chamber at a price that works for your business.
FAQ Section: Formaldehyde Emission Test Chamber
Q1: What is a formaldehyde emission test chamber used for?
A: It’s designed to measure the amount of formaldehyde gas released from materials like wood panels, furniture, and building products. This helps ensure products meet safety and environmental standards.
Q2: How does the formaldehyde testing chamber work?
A: The chamber creates a controlled environment to simulate real-life conditions. It captures emissions over time so testers can analyze formaldehyde levels accurately.
Q3: What size options are available?
A: We offer both small-scale emission chambers for lab testing and large chambers for bigger samples. You can choose based on your product size and testing needs.
Q4: Which standards does the chamber comply with?
A: Our chambers meet major standards like ASTM D6007, EN 717-1, and CARB formaldehyde testing requirements to ensure reliable results.
Q5: Can this chamber test materials other than wood?
A: Yes, it’s effective for composite wood, furniture, textiles, and other building materials that may emit VOCs including formaldehyde.
Q6: How precise are the environmental controls?
A: The chamber offers advanced climate controls for temperature, humidity, and airflow, simulating realistic indoor environments with high accuracy.
Q7: Is software included for data management?
A: Yes. The chamber comes with user-friendly software to monitor tests, collect data, and generate compliance reports easily.
Q8: What safety features are built in?
A: Our chambers have built-in safety protocols such as overheat protection, secure sealing, and alarms to keep the testing process safe and reliable.
Q9: How do I maintain and calibrate the chamber?
A: We provide clear guidelines for routine calibration and maintenance, plus dedicated support to keep your equipment performing optimally.
Q10: Who should I contact for installation and training?
A: Our US-based support team can assist with installation, training, and ongoing technical help to get you up and running quickly.
If you have more questions about our formaldehyde emission test chamber or related products, feel free to reach out. We’re here to help you meet testing and compliance goals effectively.
Understanding Formaldehyde Emissions and Regulatory Landscape
What is Formaldehyde?
Formaldehyde is a common chemical used in building materials, furniture, and household products. It’s known for its strong smell and is classified as a volatile organic compound (VOC). While useful in manufacturing, formaldehyde can release gases into the air that impact indoor air quality and health.
Why Test Emissions?
Testing formaldehyde emissions is critical to ensure safety. High levels can cause irritation, allergies, or more serious health issues. Emission tests help manufacturers meet safety standards, protect consumers, and maintain product quality. They also reduce the risk of liability and improve indoor air environments.
Global Regulations Deep Dive
Around the world, formaldehyde emissions are controlled by strict regulations. Standards like CARB (California Air Resources Board) in the U.S., ASTM D6007, and EN 717-1 in Europe set limits for how much formaldehyde can be released from products. These rules force manufacturers to test and certify their materials, keeping formaldehyde levels in check.
Local Compliance Tips
In the U.S., staying compliant means following CARB regulations and EPA guidelines closely. It’s important to stay updated as these standards evolve. Use formaldehyde emission test chambers designed specifically for local compliance testing. Regular calibration and validation of your equipment can ensure accurate results, helping your products pass inspections smoothly.
Always check your state’s specific rules too — some states have tighter limits than the federal baseline.
By understanding formaldehyde’s impact and the rules around it, you can keep your products safe and your business on the right side of regulations.
Dexiang Formaldehyde Emission Test Chamber: Core Features
Design and Build Quality
Our Dexiang formaldehyde emission test chamber is built tough with high-quality, corrosion-resistant materials. It’s designed for durability and easy cleaning — perfect for repeated testing without downtime. Compact yet spacious, it fits well in U.S. labs with limited floor space.
Advanced Controls and Precision
Equipped with user-friendly digital controls, the chamber maintains accurate temperature, humidity, and air circulation to mimic real indoor environments. This precision ensures consistent and reliable test results every time.
| Feature | Benefit |
|---|---|
| Digital climate control | Stable, accurate testing conditions |
| High-density insulation | Energy-efficient & noise-reducing |
| Sealed chamber door | Prevents contamination |
Testing Capabilities
The chamber supports multiple formaldehyde emission standards like ASTM D6007, CARB, and EN 717-1. It’s perfect for analyzing wood panels, furniture samples, composites, and building materials commonly used in the U.S. market.
- Handles small to medium-sized samples
- Supports VOC and formaldehyde concentration detection
- Enables real-time monitoring
Software and Integration
Dexiang’s software allows seamless data logging and export, compatible with common lab management systems here in the U.S. The interface is simple to use and helps streamline testing workflows.
Benefits
- Reliable & repeatable test results for compliance and R&D
- Energy-saving design reduces overhead costs
- Compact footprint fits tight spaces without sacrificing capacity
- Meets key regulatory standards necessary for U.S. certification
- Offers easy maintenance and quick calibration
With these core features, Dexiang formaldehyde testing chambers provide a smart, efficient solution for U.S. customers needing precise emission analysis without hassle.
Technical Specifications in Detail
Chamber Configurations
Our formaldehyde emission test chambers come in multiple sizes and setups to fit different testing needs:
| Model | Chamber Size (inches) | Capacity (Samples) | Usage Type |
|---|---|---|---|
| Dexiang Small | 24 x 24 x 24 | Up to 5 | Lab-scale testing |
| Dexiang Medium | 36 x 36 x 36 | Up to 12 | Standard testing |
| Dexiang Large | 48 x 48 x 48 | Up to 20 | Large bulk samples |
Each is designed as a climate chamber for formaldehyde testing, fully sealed to ensure accurate emissions measurements.
Performance Metrics
Our chambers meet strict performance criteria, including:
- Temperature control range: 15°C to 50°C ±0.5°C
- Relative humidity: 30% to 80% RH ±3%
- Air exchange rate: Adjustable per ASTM D6007 standards
- Formaldehyde detection sensitivity: down to 0.01 ppm
Installation and Operation Guide
Simple setup means you can get running in no time:
- Plug-and-play with standard US power (110/120V)
- User-friendly control panel with digital readout
- Step-by-step calibration included
- Minimal maintenance required
Customization Options
We tailor our formaldehyde testing chambers depending on your unique needs:
- Custom sizes for atypical sample dimensions
- Advanced software for data logging and reports
- Integration with VOC emission sensors and analyzers
- Optional remote monitoring and control systems
