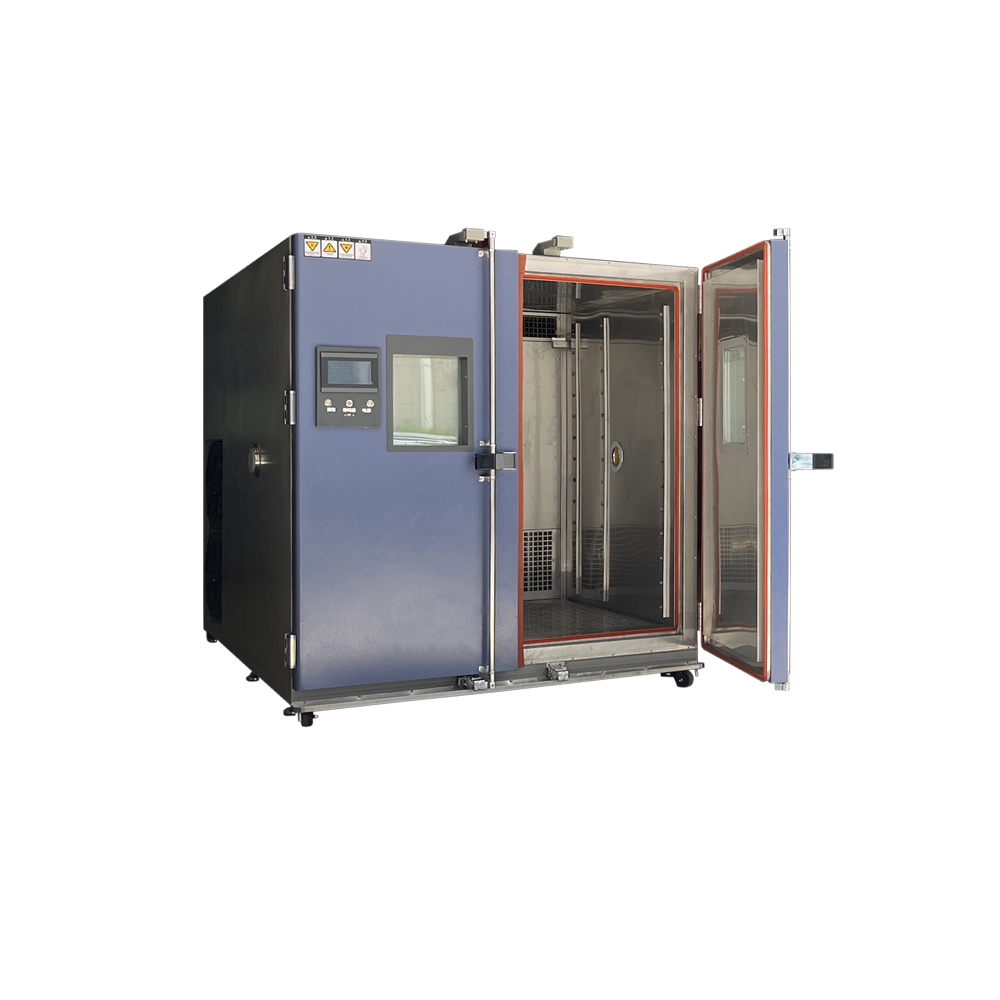

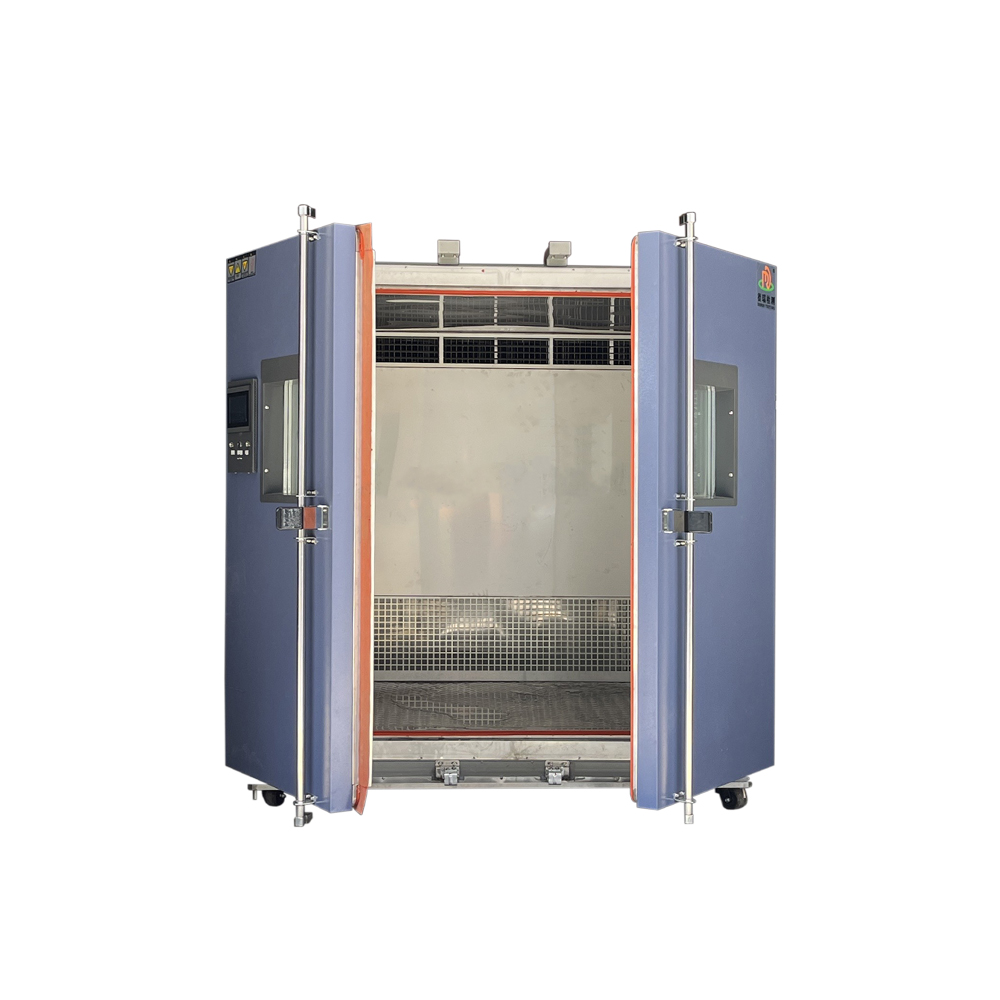

Walk In Environmental Test Chamber
The walk-in environmental testing chamber is a high-performance device designed specifically for large-scale products or batch testing, widely used in industries such as aerospace, automotive, batteries, and pharmaceuticals. Its core advantage lies in the ability to simulate extreme temperature, humidity, and climate conditions, ensuring the reliability and stability of the product in various environments.
- model：DR-H201
- capacity:Customized on demand
- temperature range:-40~+150℃
- Humidity range：20%~98%
产品详情
1: How Walk-in Environmental Test Chambers Work
Walk-in chambers use advanced systems to control temperature, humidity, pressure, and other environmental factors. Key components include:
- Heating and Cooling Systems: Ensure precise temperature control.
- Humidity Generators: Simulate varying moisture levels.
- Control Panels: Allow users to set and monitor conditions.
2: Key Technical Specifications
When evaluating walk-in chambers, consider:
- Temperature Range: Typically from -60°C to +180°C.
- Humidity Range: Usually between 20% and 98% RH.
- Uniformity: Ensures consistent conditions throughout the chamber.
3: Industries That Rely on Walk-in Chambers
- Electronics: Testing devices for thermal and humidity resistance.
- Automotive: Evaluating vehicle components under extreme conditions.
- Aerospace: Simulating high-altitude and space environments.
Product Specifications
Our specialists can help you find the perfect Walk In Environmental Test Chamber.
| Model | DR-H202 |
| System | Balanced Temperature & Humidity Control System |
| Temp. range | -70°C~150°C |
| Humid. range | 20 ~ 98 percent R.H. |
| Temp. & Humid. accuracy | ± 0.3°C; ± 2 percent R.H |
| Temp. & Humid. regularity | ± 1°C; ± 3 percent RH |
| Resolution | 0.1°C, 1 percent, P.I.D control |
| Heating up | -40°C ~ +100°C within 45 min |
| Heating down | 20°C~ -20°Cwithin 40min |
| Interior dimension(W×D×H) | 60×80×85cm |
| Exterior dimension(W×D×H) | 120×135×175cm |
| Interior material | Stainless steel plate(SUS304) |
| Exterior material | Stainless steel plate(SUS304) |
| Insulation | Rigid foam |
| Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display | LCD |
| Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Weight | Approx. 800kg |
| Power | AC380V±10 percent 50/60Hz |
Walk In Environmental Test Chamber Frequently Asked Questions (FAQs)：
- What is the difference between walk-in and benchtop chambers?
Walk-in chambers are larger and designed for testing full-sized products, while benchtop chambers are smaller and used for smaller samples. - Can walk-in chambers be customized?
Yes, customizable options to meet specific testing needs.
